3.6.2 3D Transformation

In Chapter 3 you learned that you need to convert from one coordinate system to another in order to ultimately display a picture on the TV screen. Now this chapter shows you how to actually do the coordinate system transformations by using matrix calculations.

Usually, 3x3 matrices are used for two-dimensional coordinate transformations and 4x4 matrices are used for three-dimensional coordinate transformations. In addition, to display the coordinates of vertices, we show you how to use two-dimensional vectors [x y 1] and three-dimensional vectors [x y z 1].

In general, a matrix like the following is used for three-dimensional coordinate transformations:

The coordinate vector that specifies the vertex to be transformed is given as:

before the transformation and as:

after the transformation.

During the transformation process three different variations of the conversion matrix are created to apply scaling information, movement translation information, and rotational information.

Scaling matrix to specify enlargements or reductions

The matrix that holds the scaling information looks like this:

The expanded matrix calculation looks like this:

As you can see, each coordinate (x, y, and z) is given scaling information (sx, sy, and sz). Note that if a scaling factor is negative, it reverses the direction of the axis as it did with in the 2D scaling transformation.

Use the following N64 functions to apply scaling:
- guScale
- guScaleF
Obviously when you multiply a matrix where by any vector, the vector does not change at all. This type of matrix is called an identity matrix. The guMtxIdent N64 function uses an identity matrix.
Translation matrix to specify movement

The three-dimensional translation matrix looks like this:

The translation matrix is used to specify movement; it translates the coordinates of an object to move it to a new location. When you multiply this matrix by a vector and expand it, you get this result:

The translation factors move the specified vertex to a new location, as you can see here:

You can use the following N64 functions to translate an object's vertex to a new location:
- guTranslate
- guTranslateF
Rotation matrix to specify rotation around an axis of origin

Three-dimensional rotational conversion is more difficult than two-dimensional because there are an infinite number of possibilities for the axis of origin.

However, in most cases, you will specify the rotation of each coordinate axis by using the synthesis method instead of using arbitrary axis rotation (see section 3.6.4, Co-ordinate System Transformation).

X-axis rotation is specified by this matrix:

When you expand the multiplication of a vector with this matrix, each coordinate component becomes:

As you can see, the X component has not changed.

Y-axis rotation is specified by this matrix:

When you expand the multiplication of a vector with this matrix, each coordinate component becomes:

As you can see, the Y component has not changed.

Z-axis rotation is specified by this matrix:

When you expand the multiplication of a vector with this matrix, each coordinate component becomes:

As you can see, the Z component has not changed.

The following N64 functions provide for rotation:

Rotational Direction of Each Axis Rotation

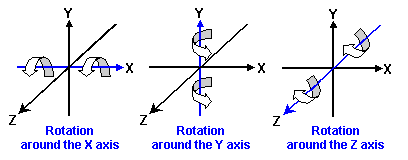

As explained previously, N64 uses the right-handed coordinate system (see section 3.3.1, Right/Left Hand Co-ordinate System). In this system, the positive rotation of an axis is counter clockwise as you directly face the oncoming vector, so the positive direction of each coordinate axis rotation looks like this:
